vitAcoustic sheets - highly sound absorbable acoustic PET panels in 19 colors

vitAcoustic Acoustic sheets (for craftsmen) - Premium PET

Vitacoustic PREMIUM PET polyethylene acoustic panels for individual applications

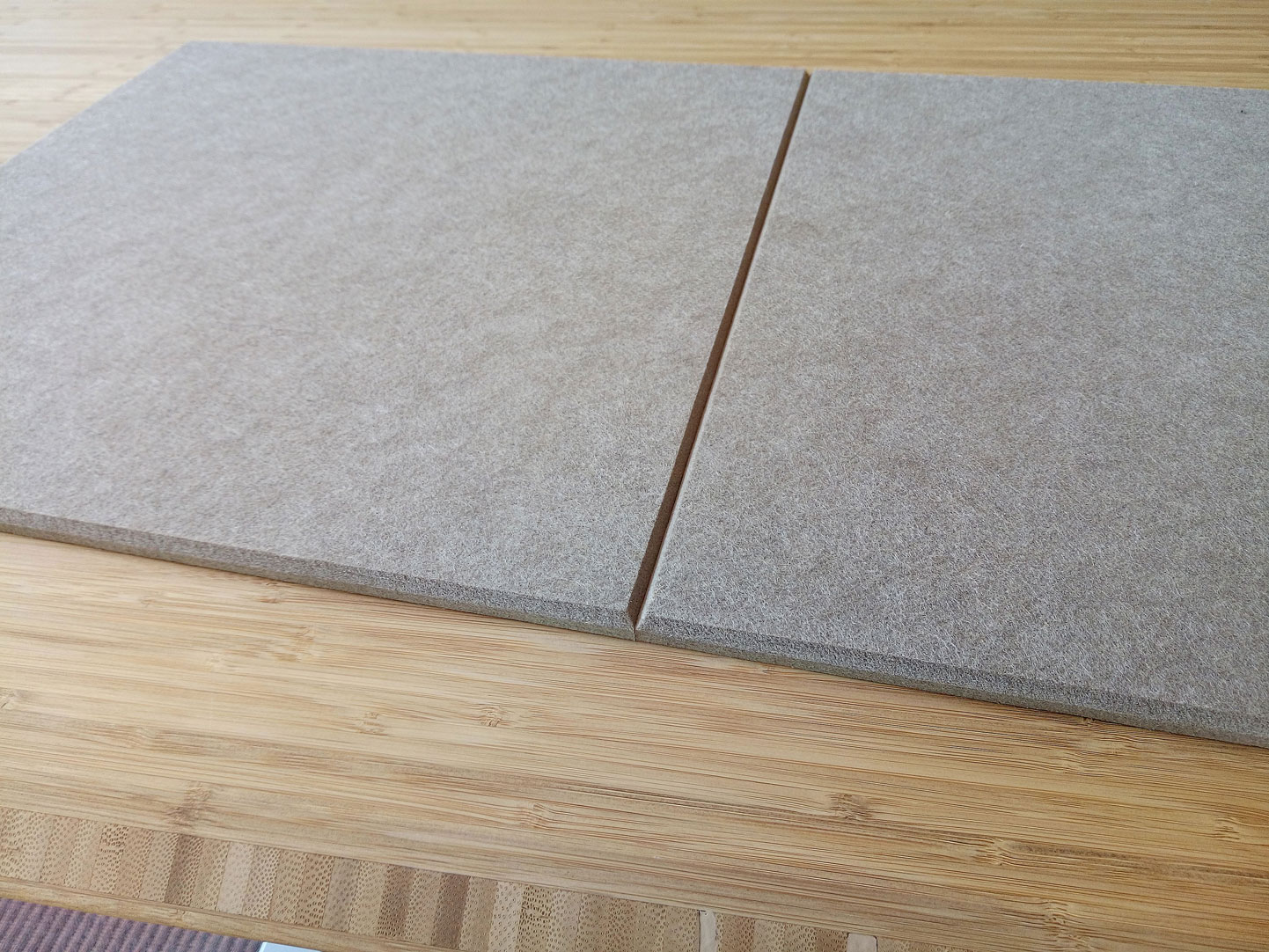

For craftsmen we offer the acoustic plates in the raw dimension of 2420x1220mm.

Premium acoustic panels made of (Polyethylenterephthalat / Polyester) 9mm thick 1.9kg / m² - color: see selection box
Oekotex 100% pollutant free

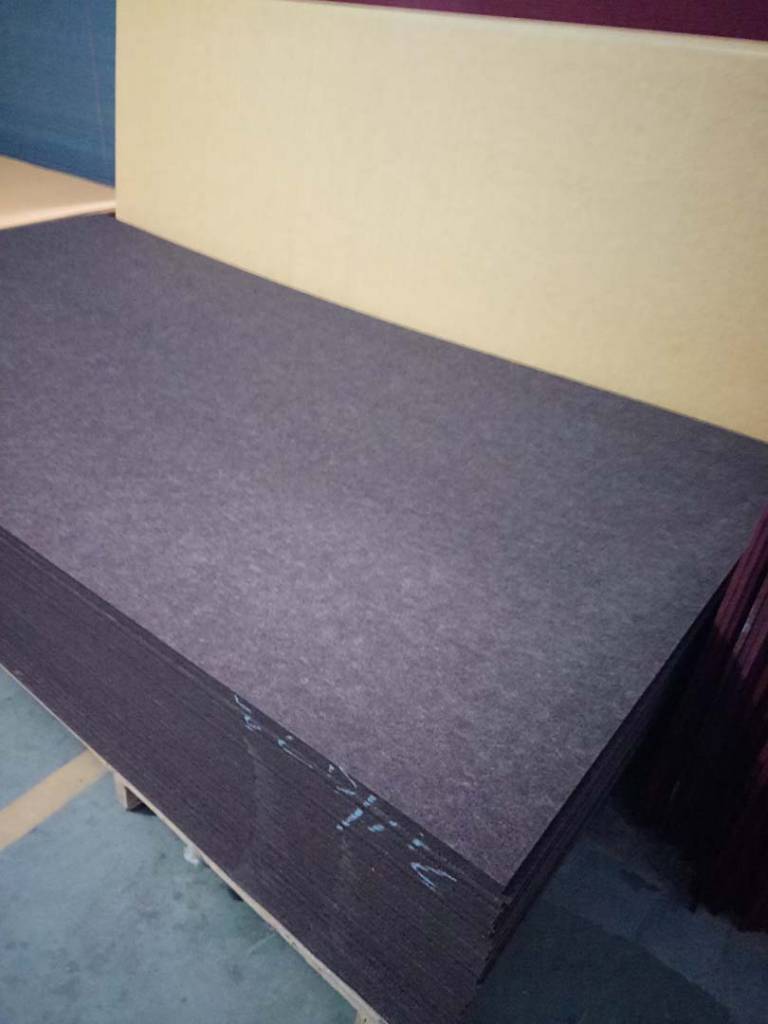

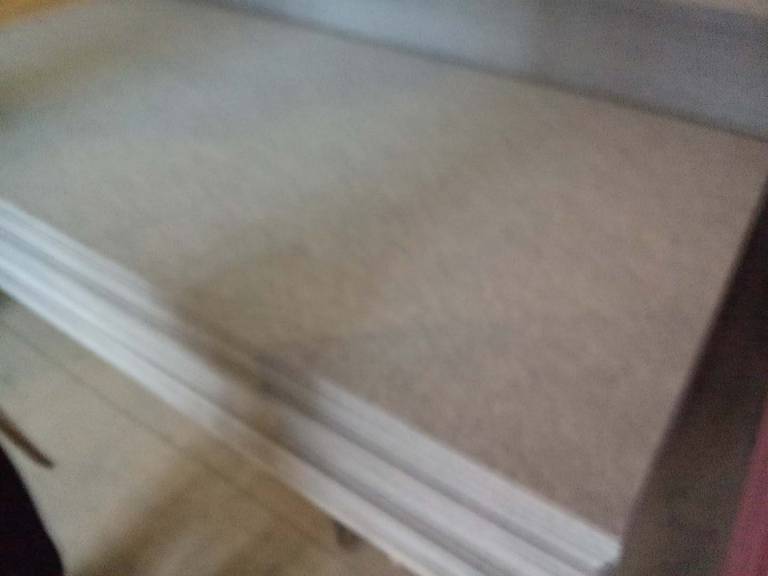

Board dimension: 2420x1220mm (2.95m²)
Highly absorbent (details in the application are to be considered! See test curves)
B1 fire class

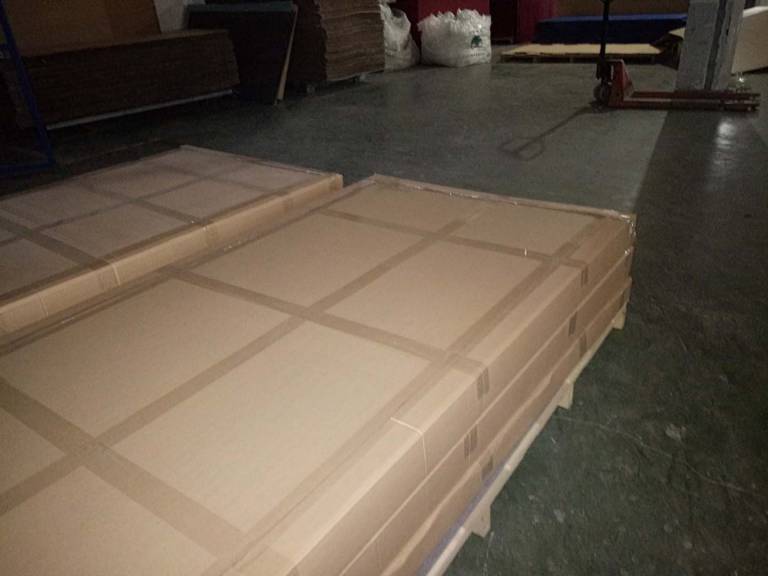

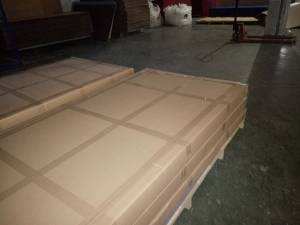

Packing sizes: 10 pcs in package 2440x1220x100mm = 65kg / 80 pcs on pallet 2450x800x1300mm = 500kg

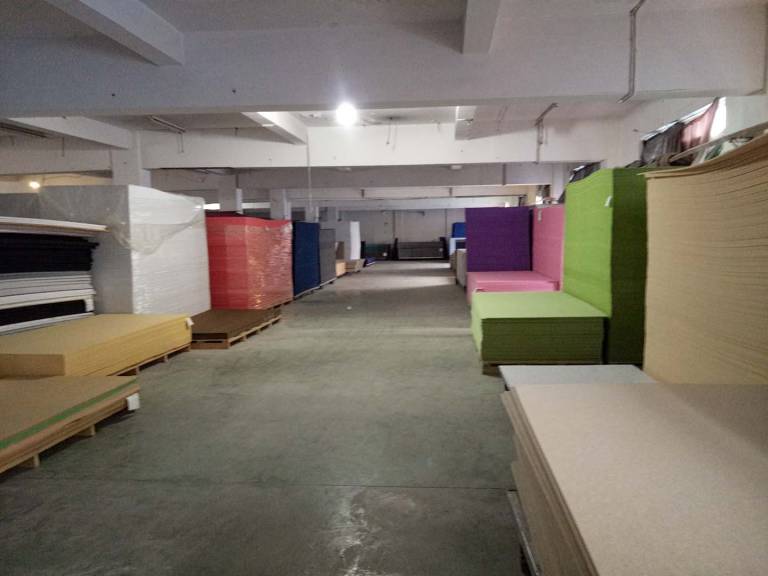

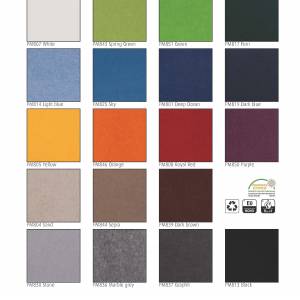

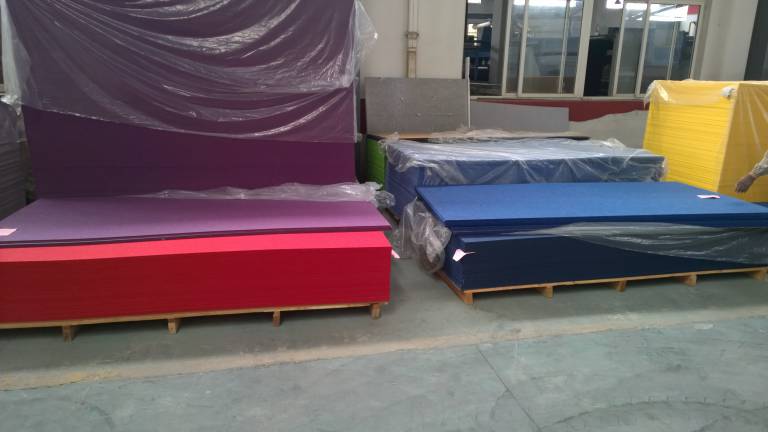

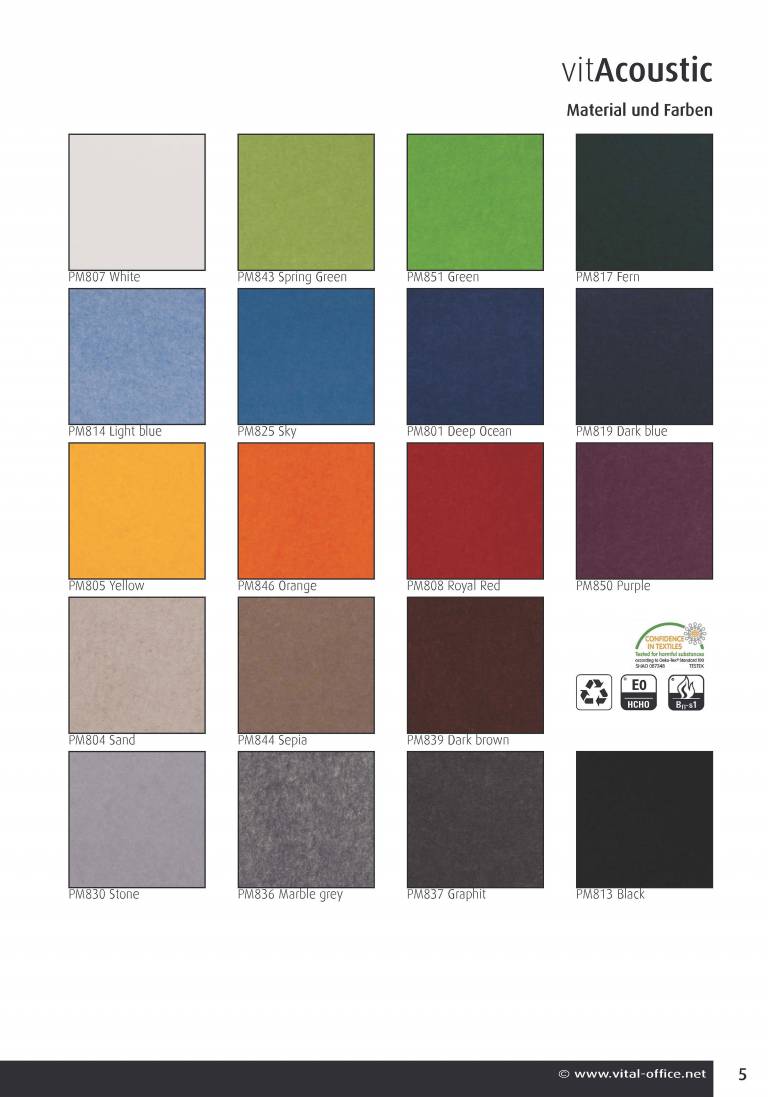

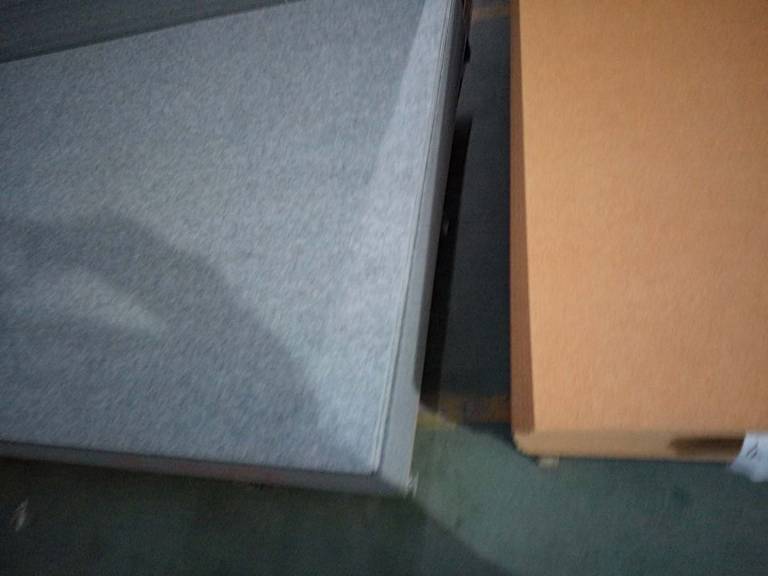

19 colors available from stock Germany

With Vital Office Acoustics PET`s we would like to present you a very efficient, lively, color and shapely product, which is unique in its kind and meets many different requirements or even existing problems (solves).

Read 30143 times

(15 votes)

Tagged under

Written by Peter Jordan 14 May 2020 - 07:09:01

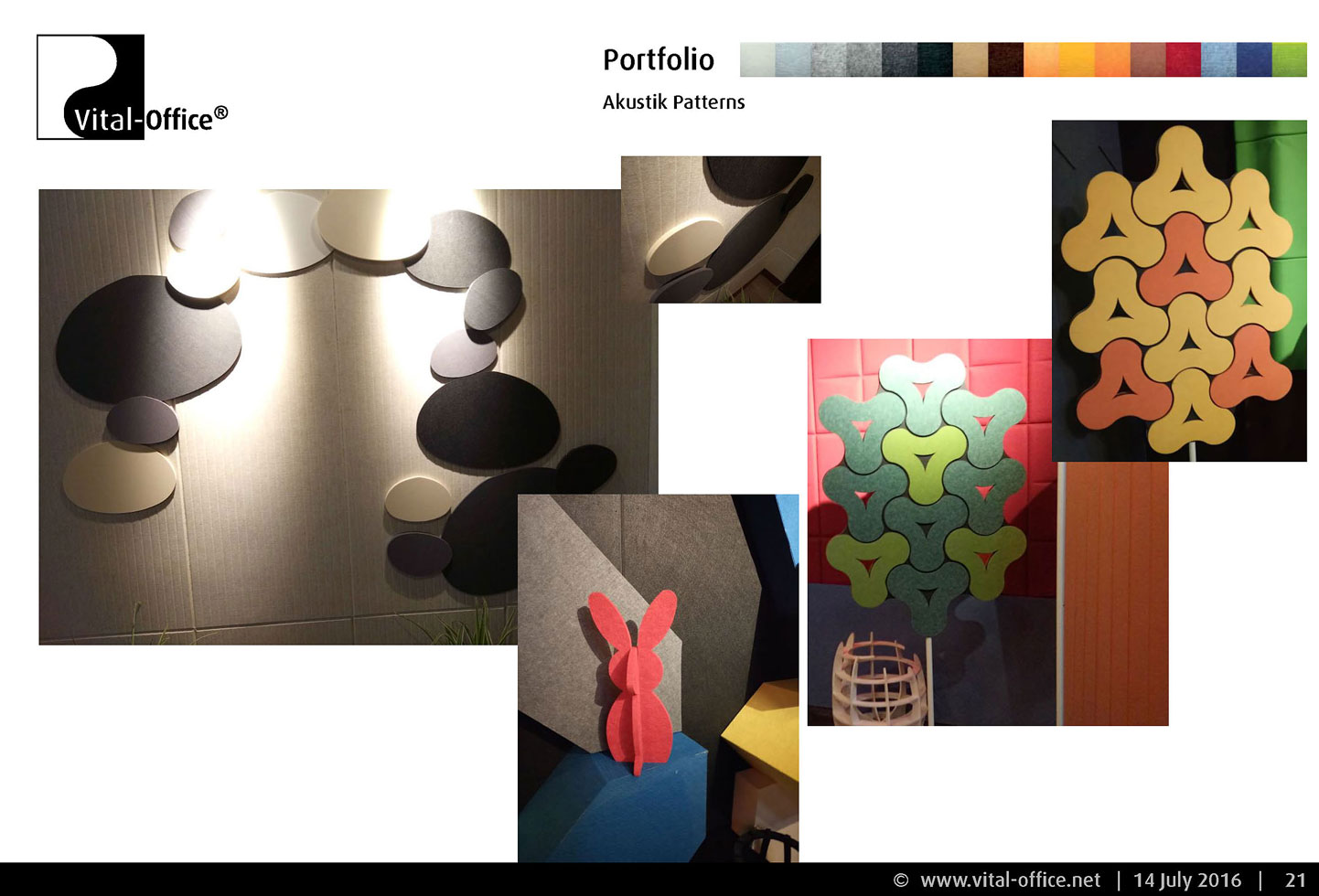

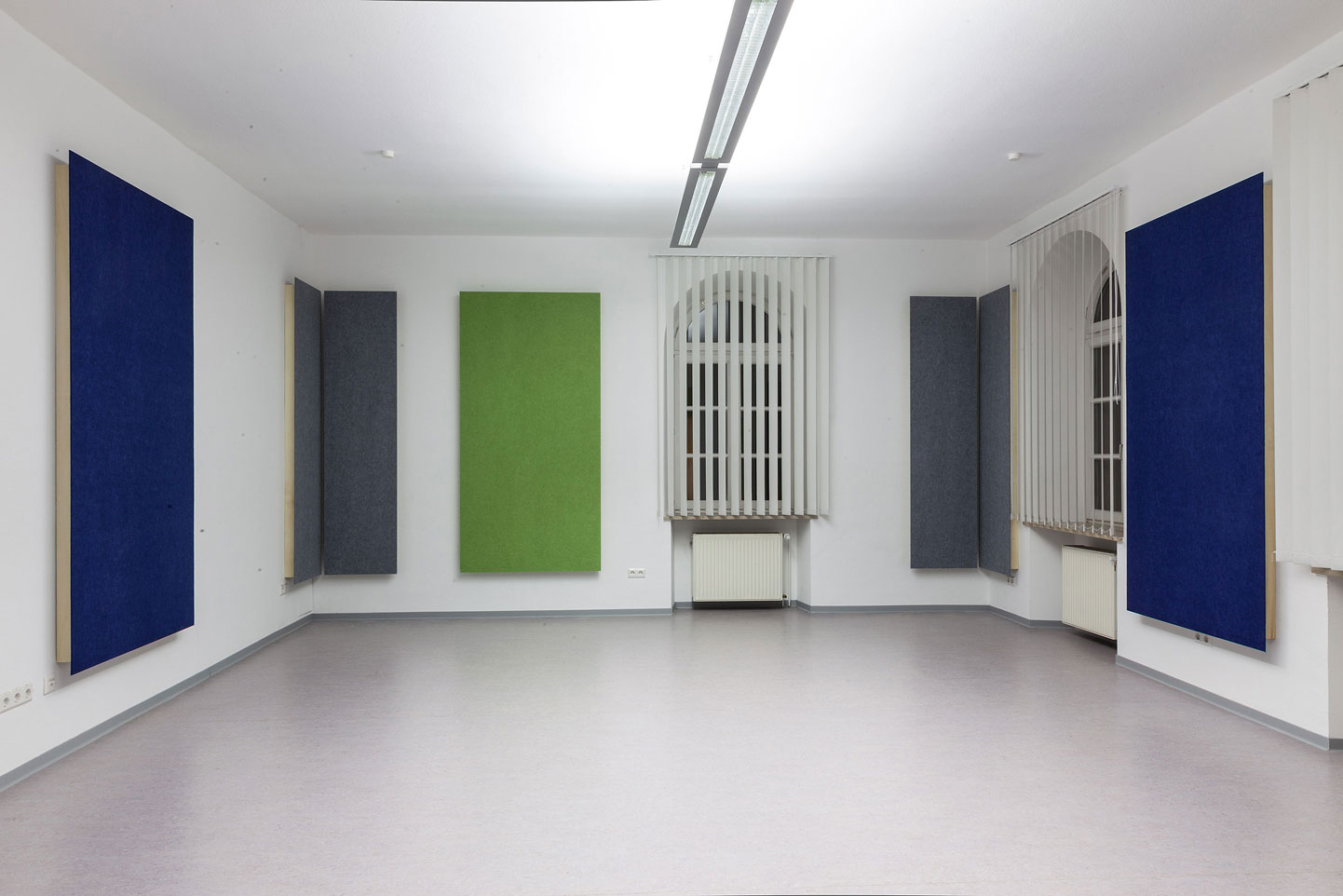

Individually creative acoustic wall design for:

Their apartment,
Your office,
Restaurants and
public buildings

Your advantage:

Very high sound absorption> 80%
Pleasantly "quiet" sense of space (feel-good atmosphere)
Good hearing and understanding of soft tones
Optically attractive design
Great color selection to match your ambience
Good for allergy sufferers, as no emission of textile pollution-free acoustic panels
Practical - Just pin your notes or photos.

Characteristics:

low weight, thin acoustic material with great effect,
high color selection (50 colors in stock plus individual colors on request)
Robust and durable
Excellent sound absorption due to special densification of the fibers
Recycled and recyclable
Intelligent use of resources
Protecting nature by environment
highly absorbent (details in the application are to be considered!)
B1 fire class
Without ingredients, without glues, without dyes .. Zero VOC .. good for allergy sufferers
Textile panels similar to felt, but made of synthetic fibers
Various qualities, from rough felt structure to particularly fine, silk-like surface
water resistant
Can be produced in any thicknesses and colors according to customer requirements.
Low weight
Good value for money

Production method:

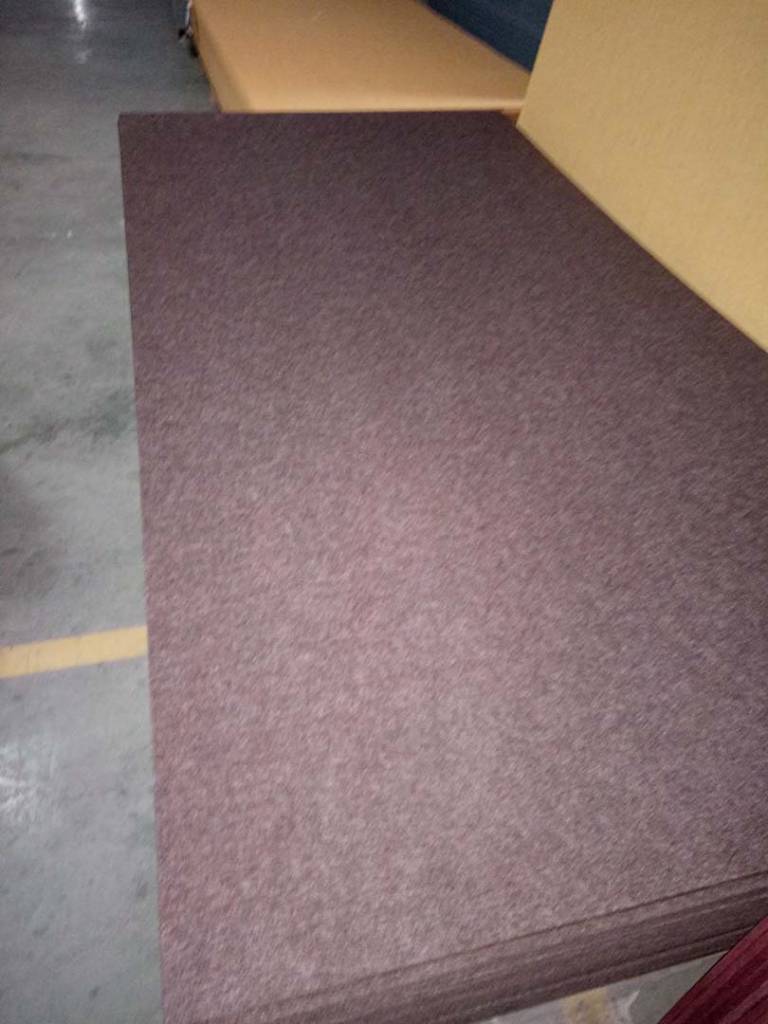

The pure polyethylene fibers are produced like needled felt into fabrics, tiles and plates using needle technology. The fibers are interwoven exclusively by means of needles. NO glue and NO other binder added! Different colors and patterns arise because fibers of different colors are previously mixed together. This creates the typical mottled structure of the polyethylene felt sheets.

Further processing:

To cut
Pressing (2d)

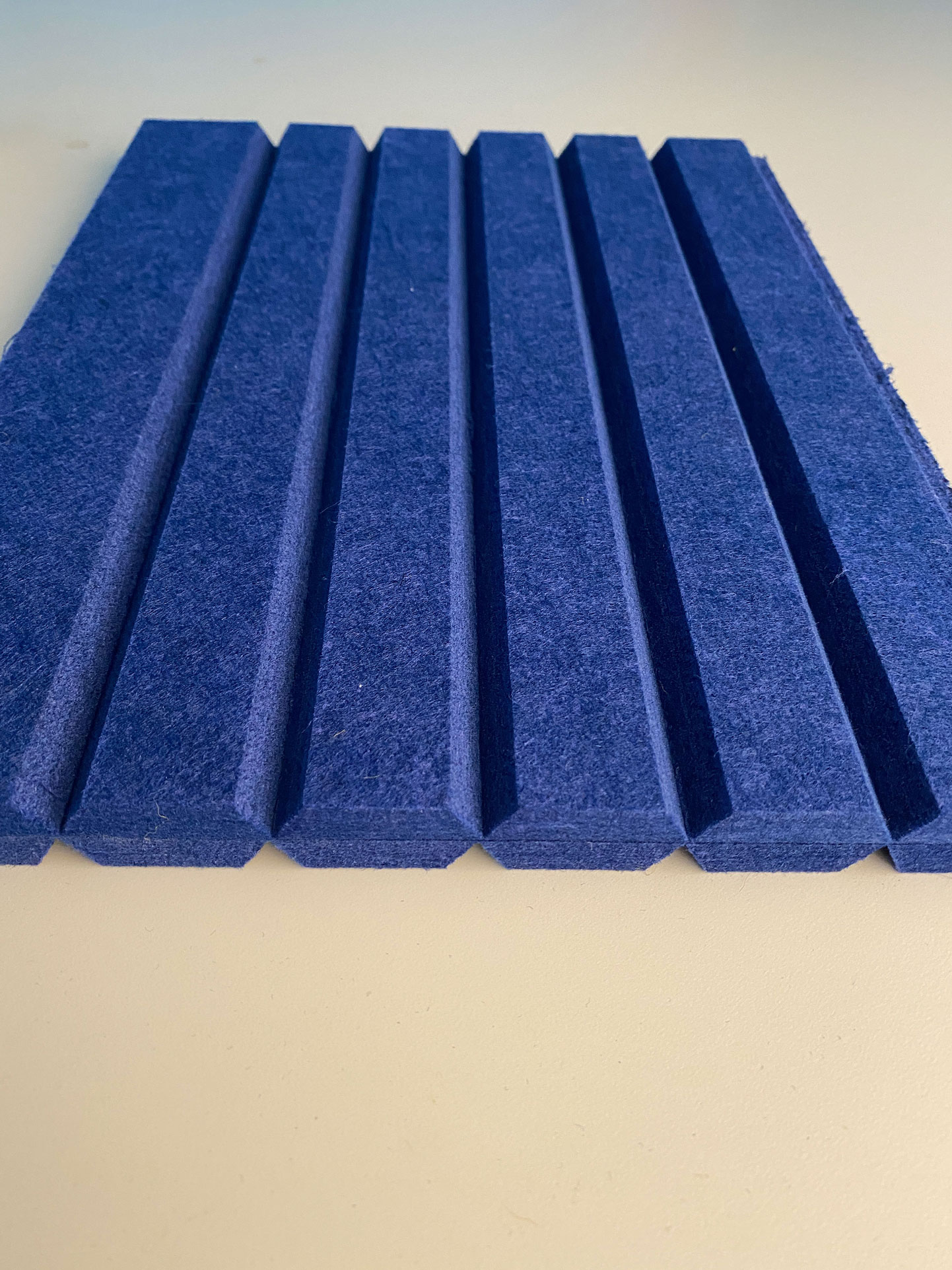

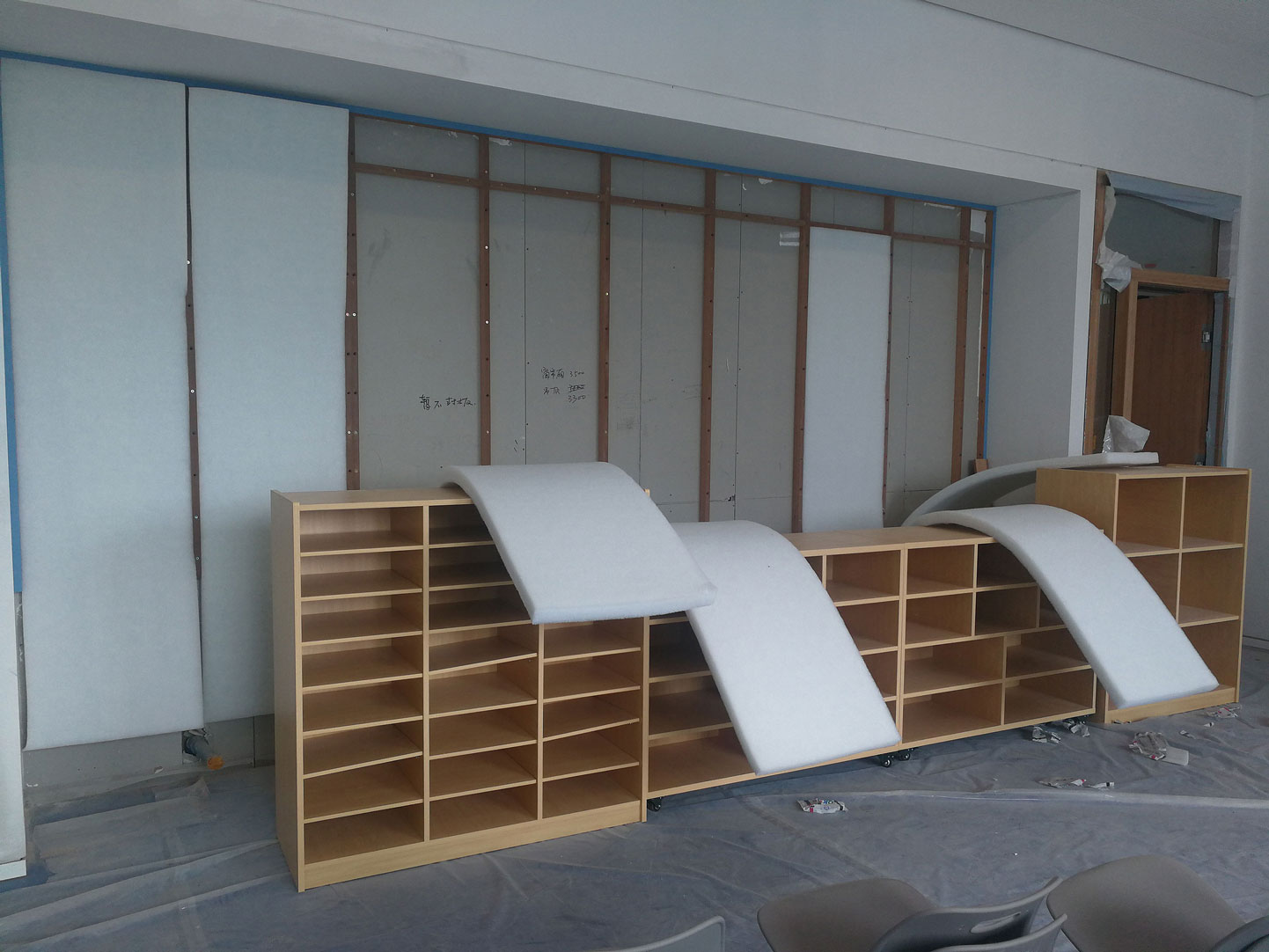

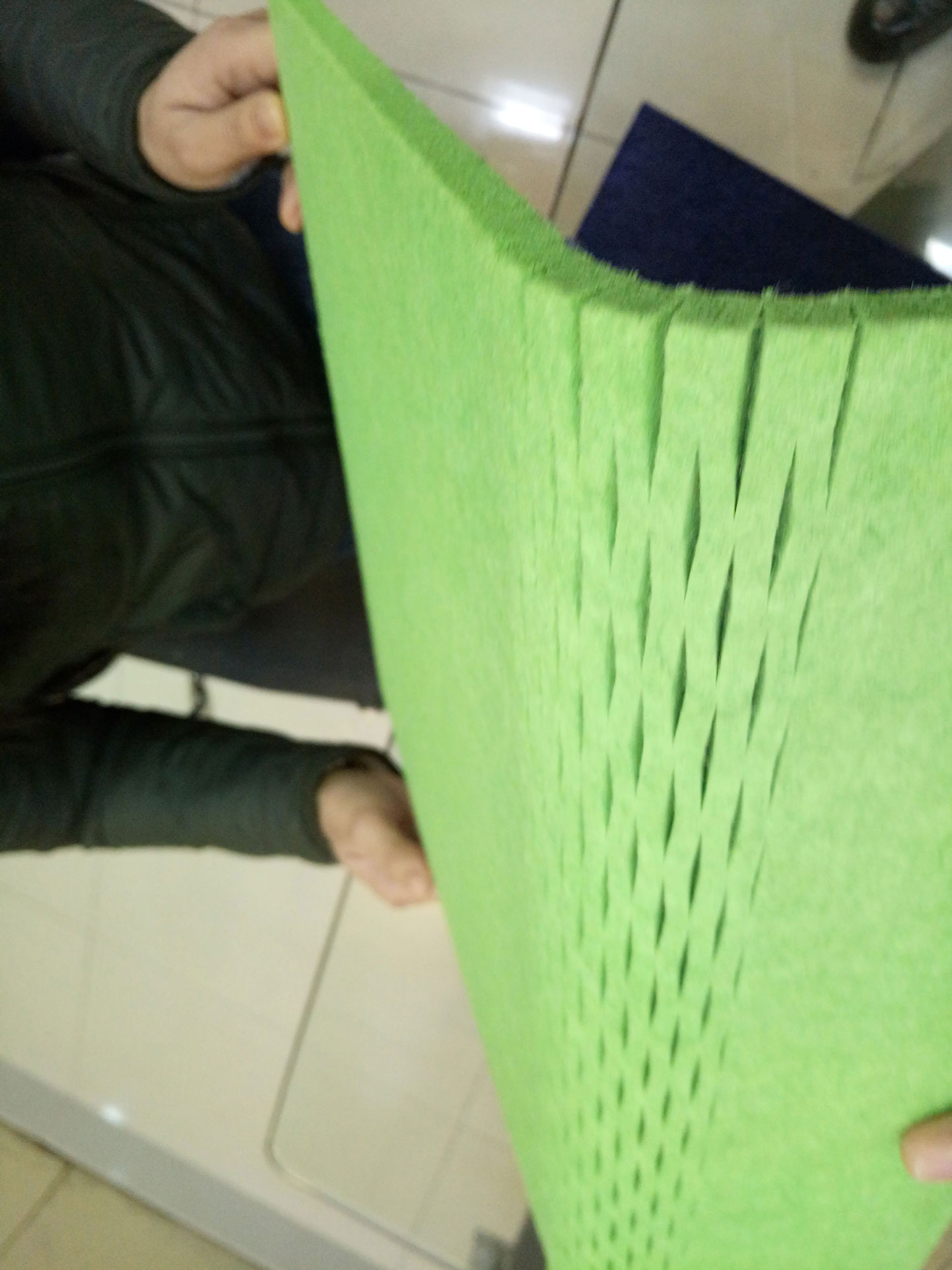

Deep drawing (3d)
Gluing, stapling, screwing

Application:

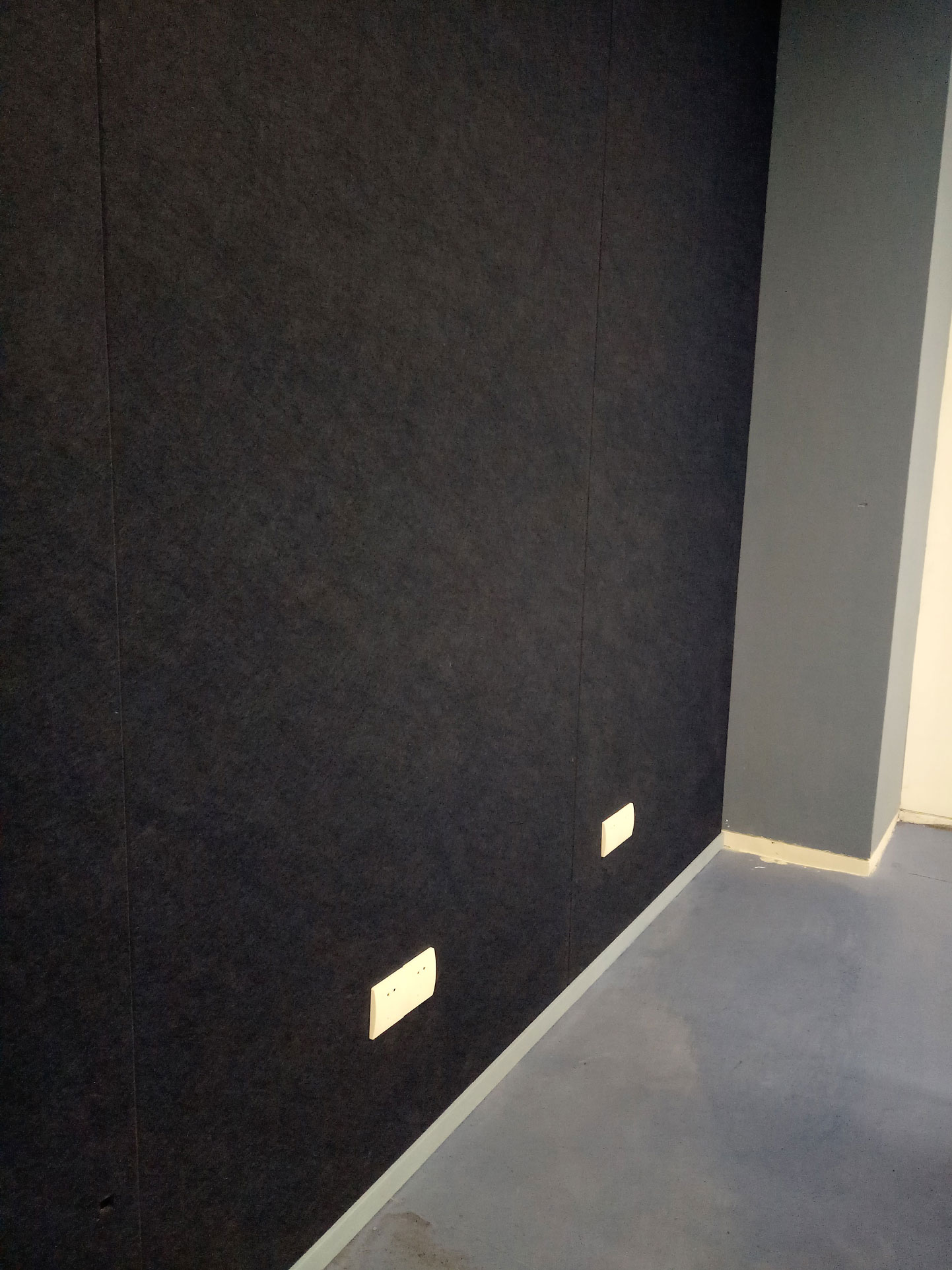

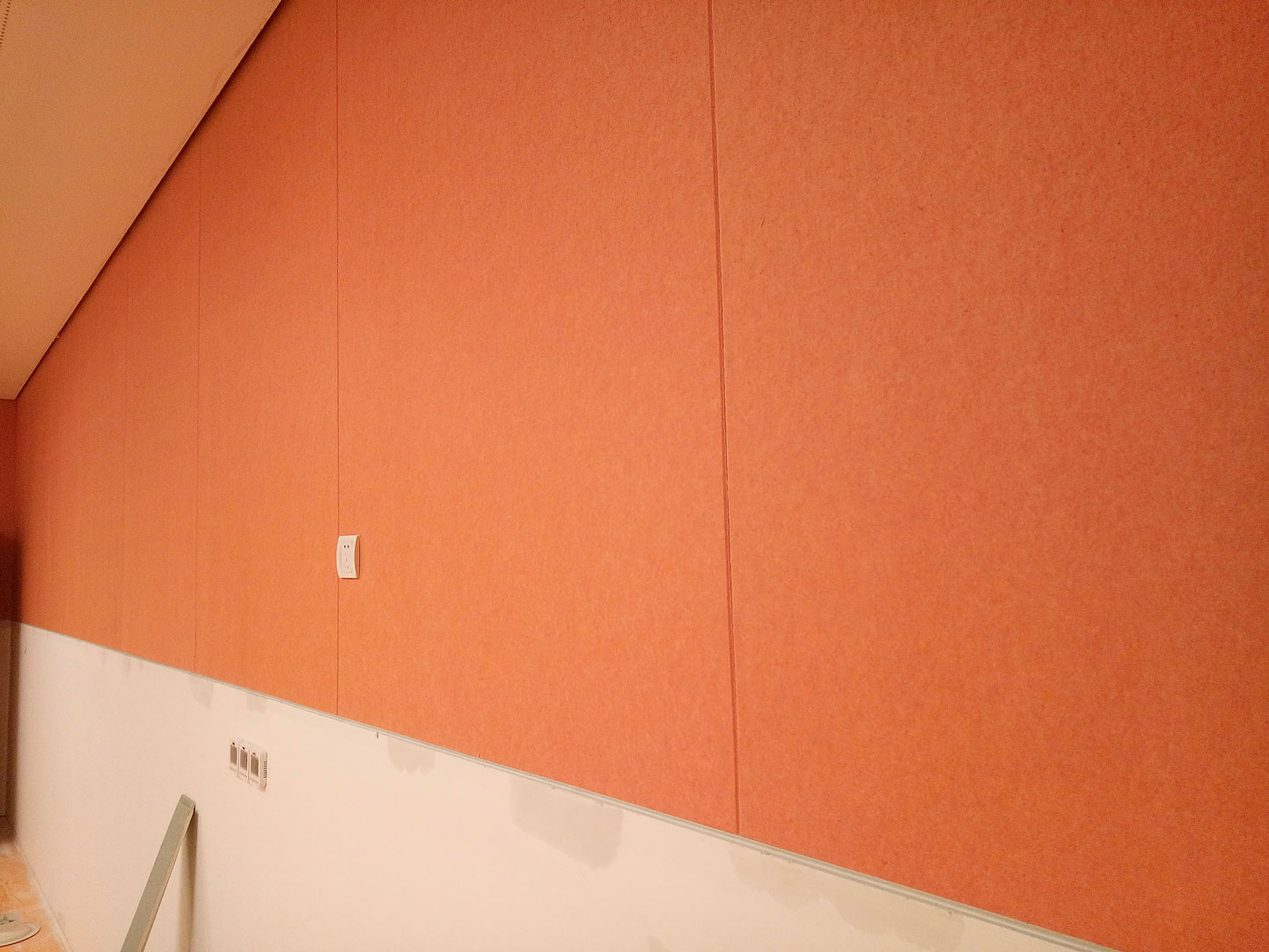

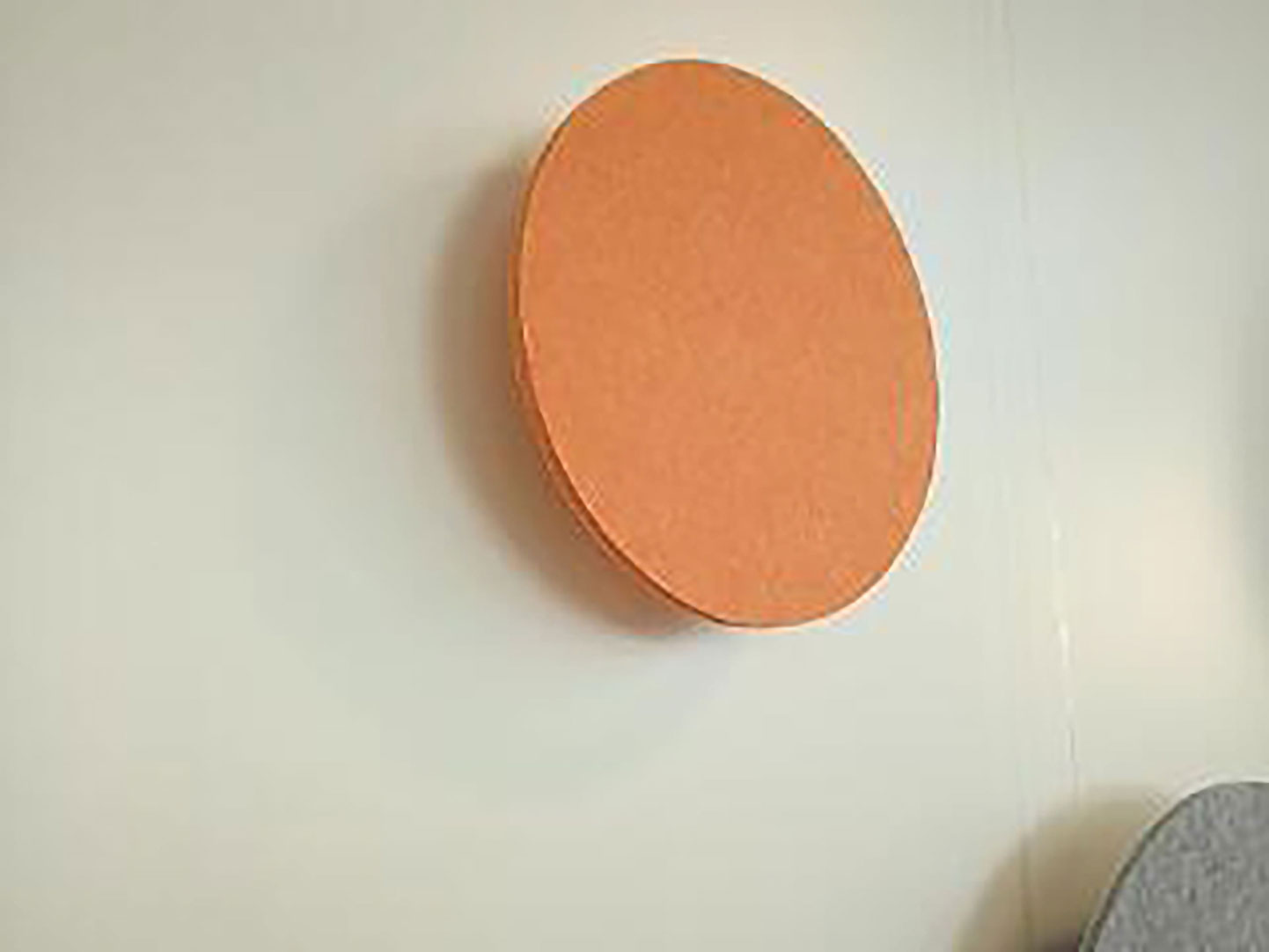

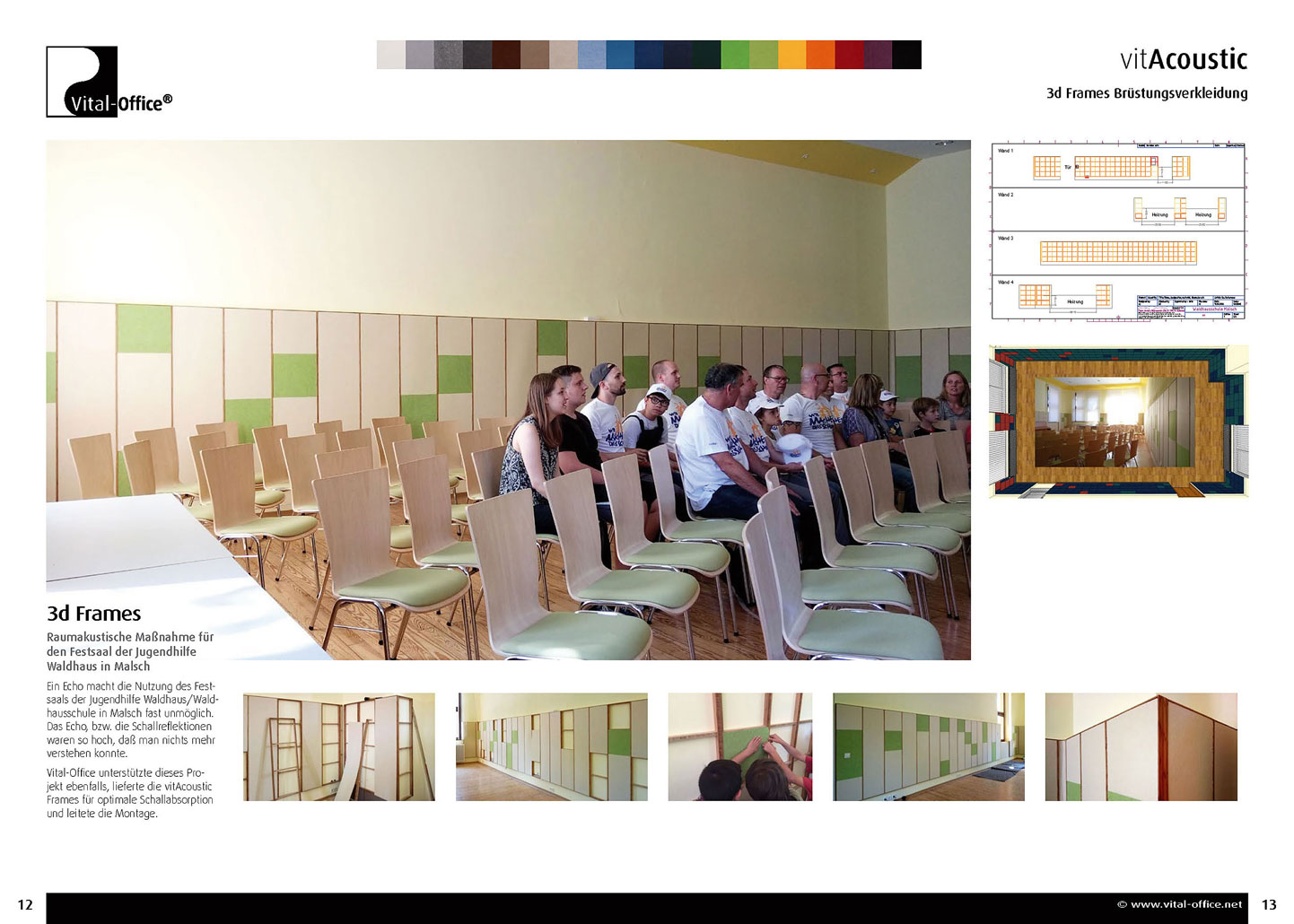

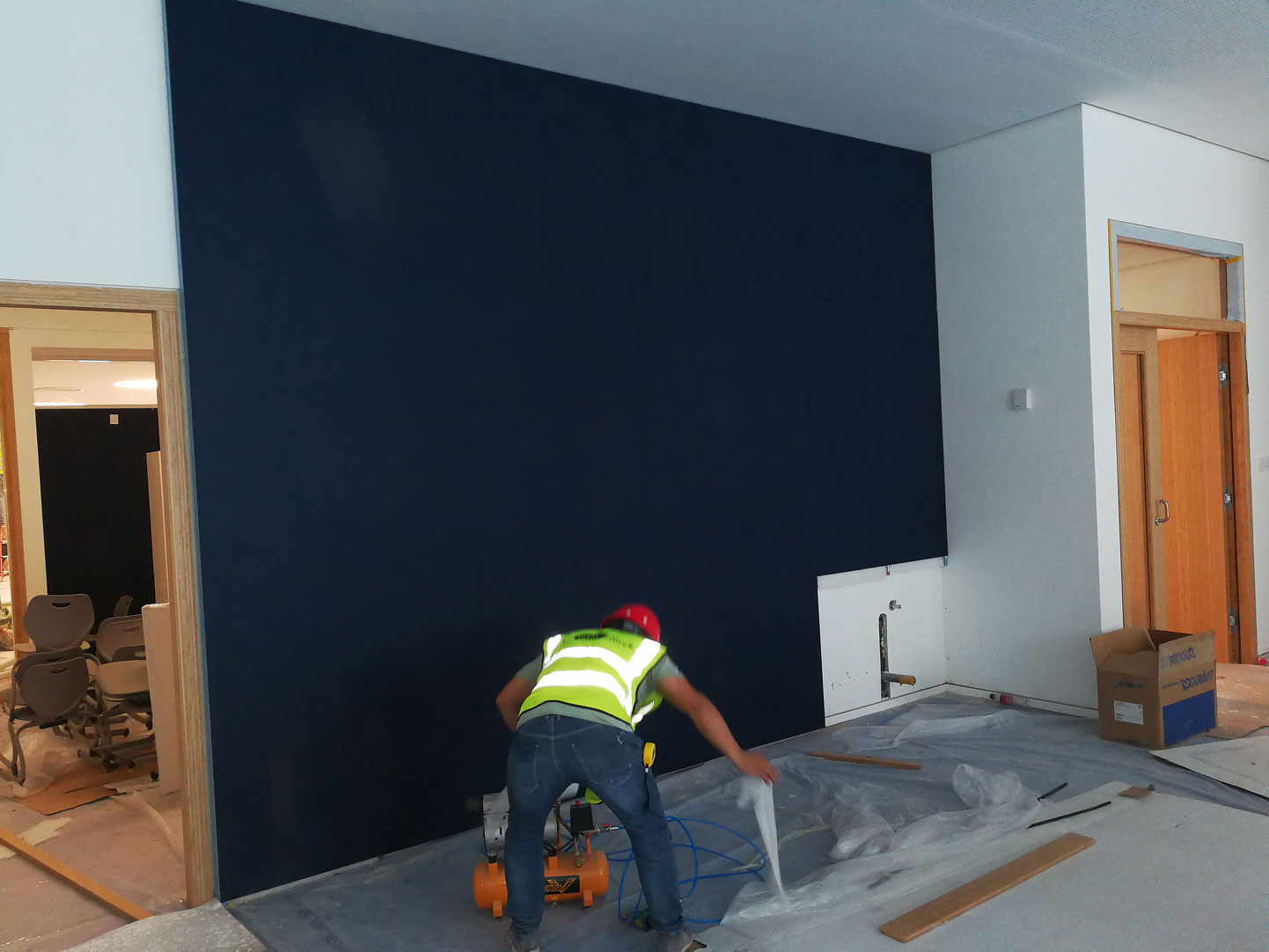

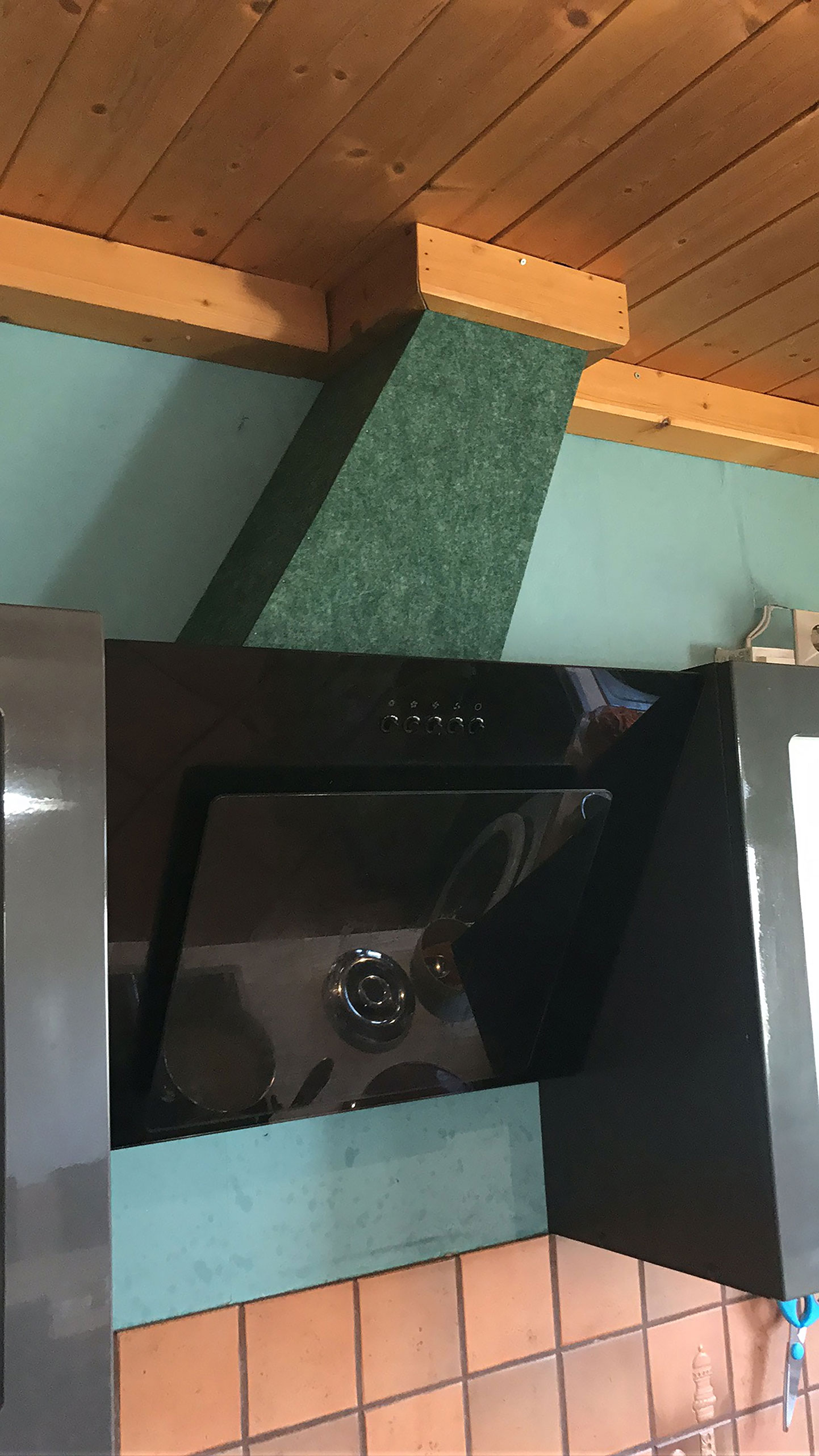

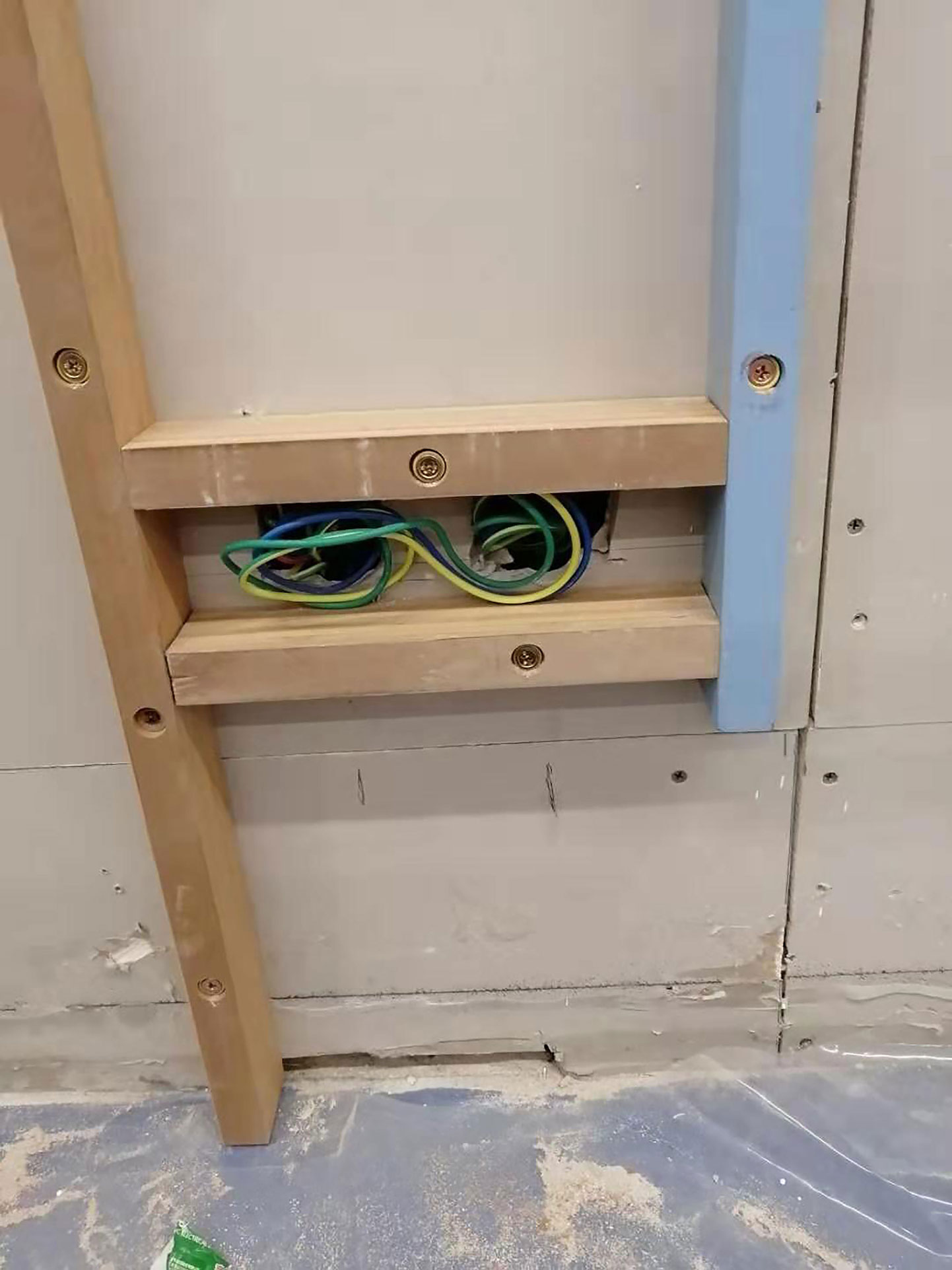

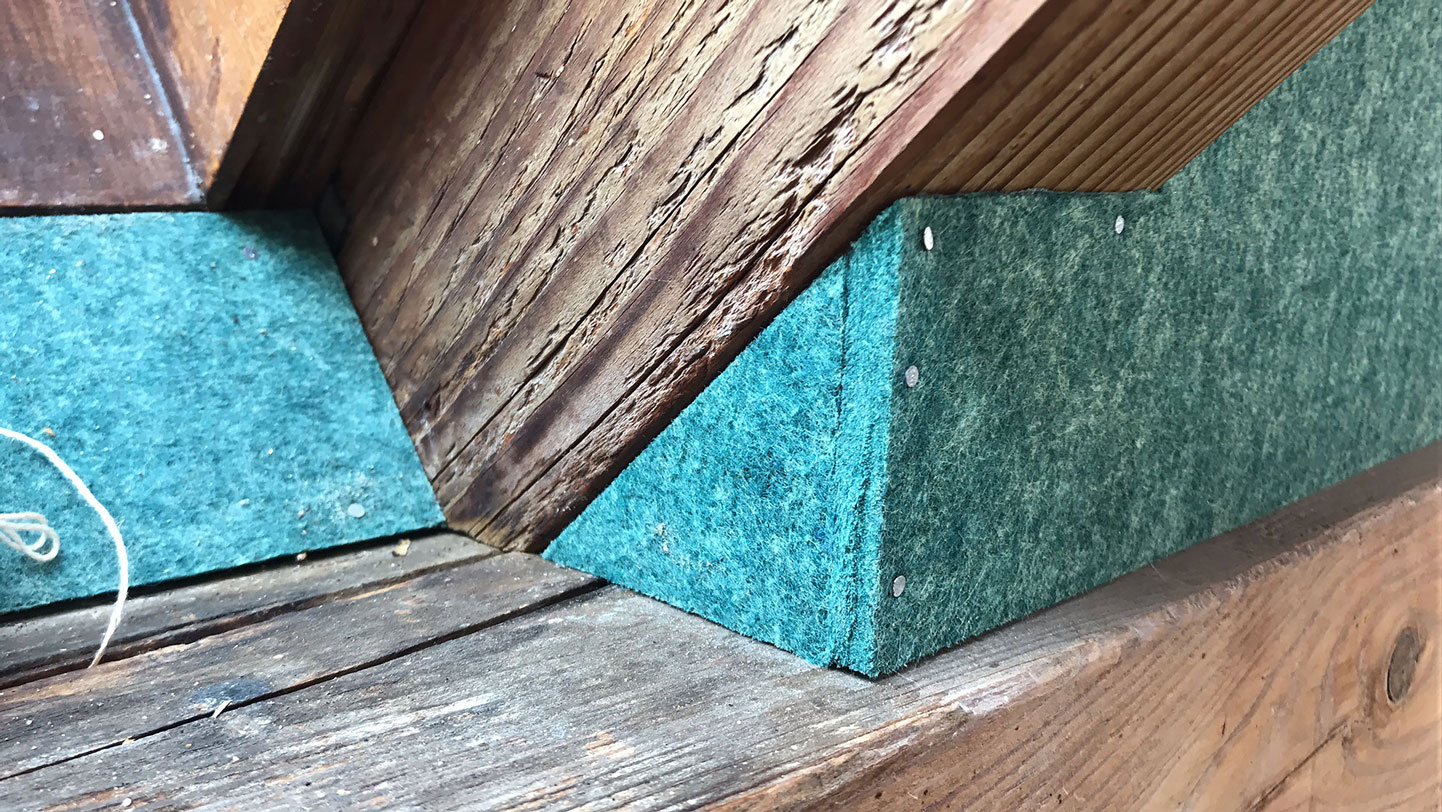

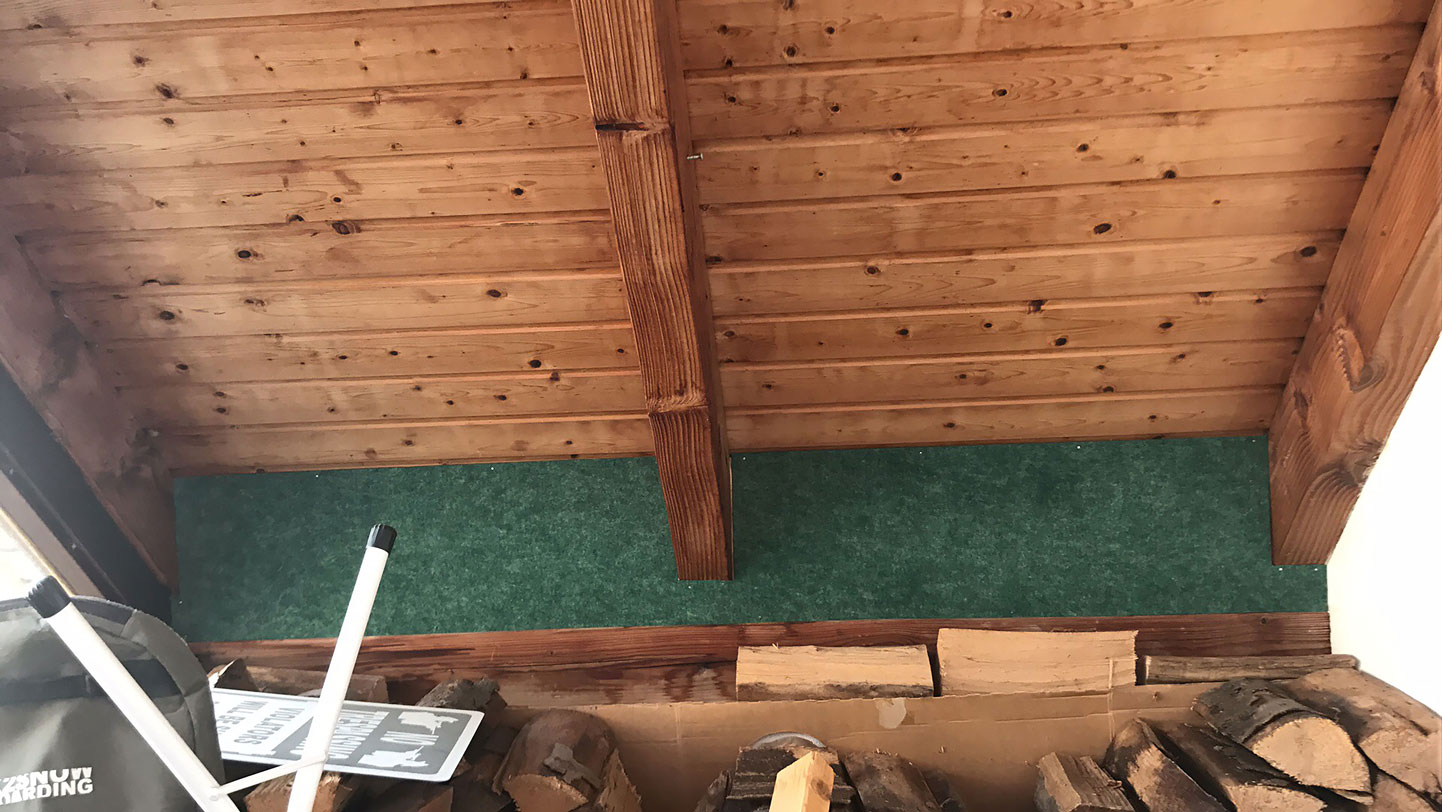

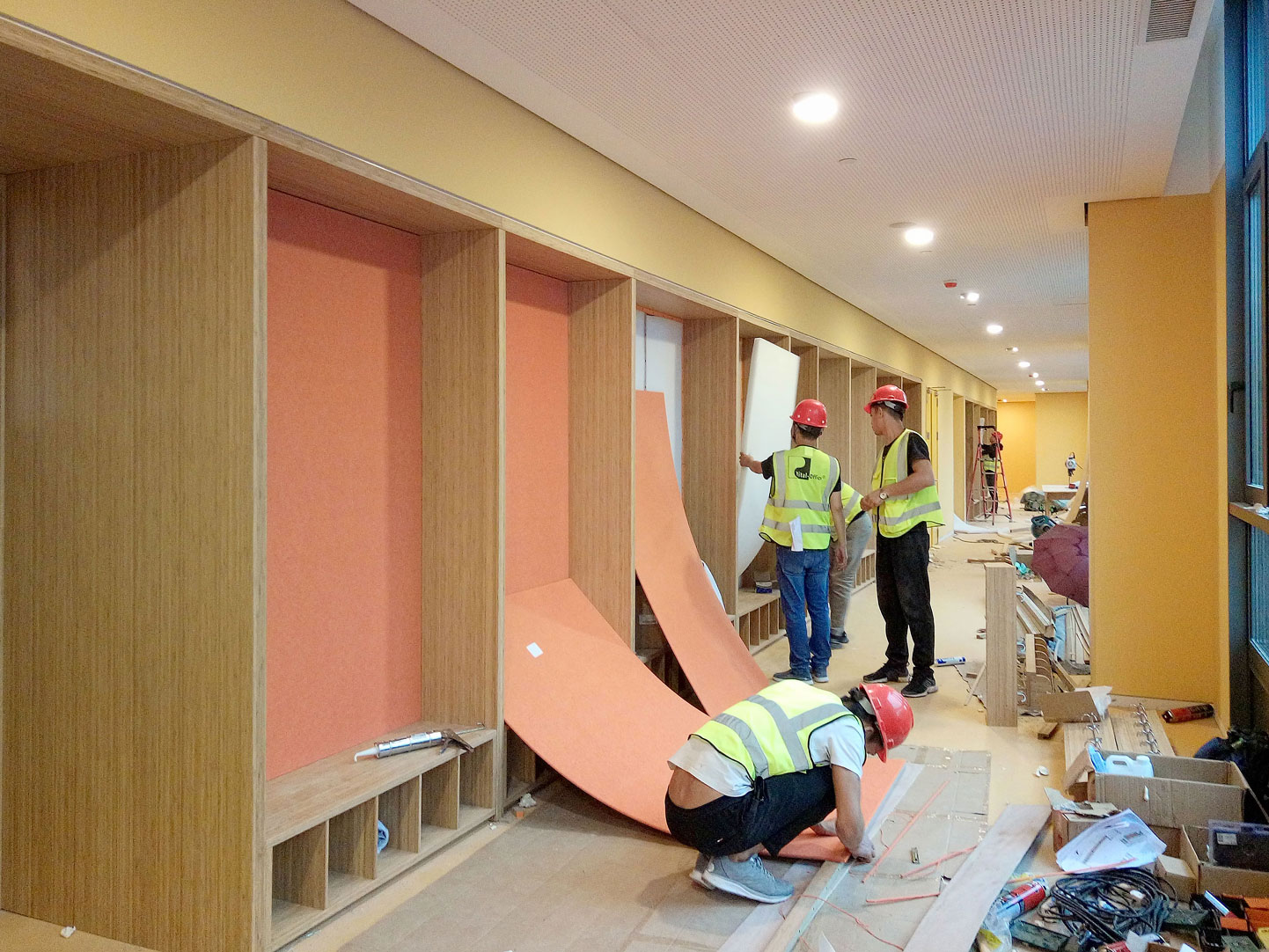

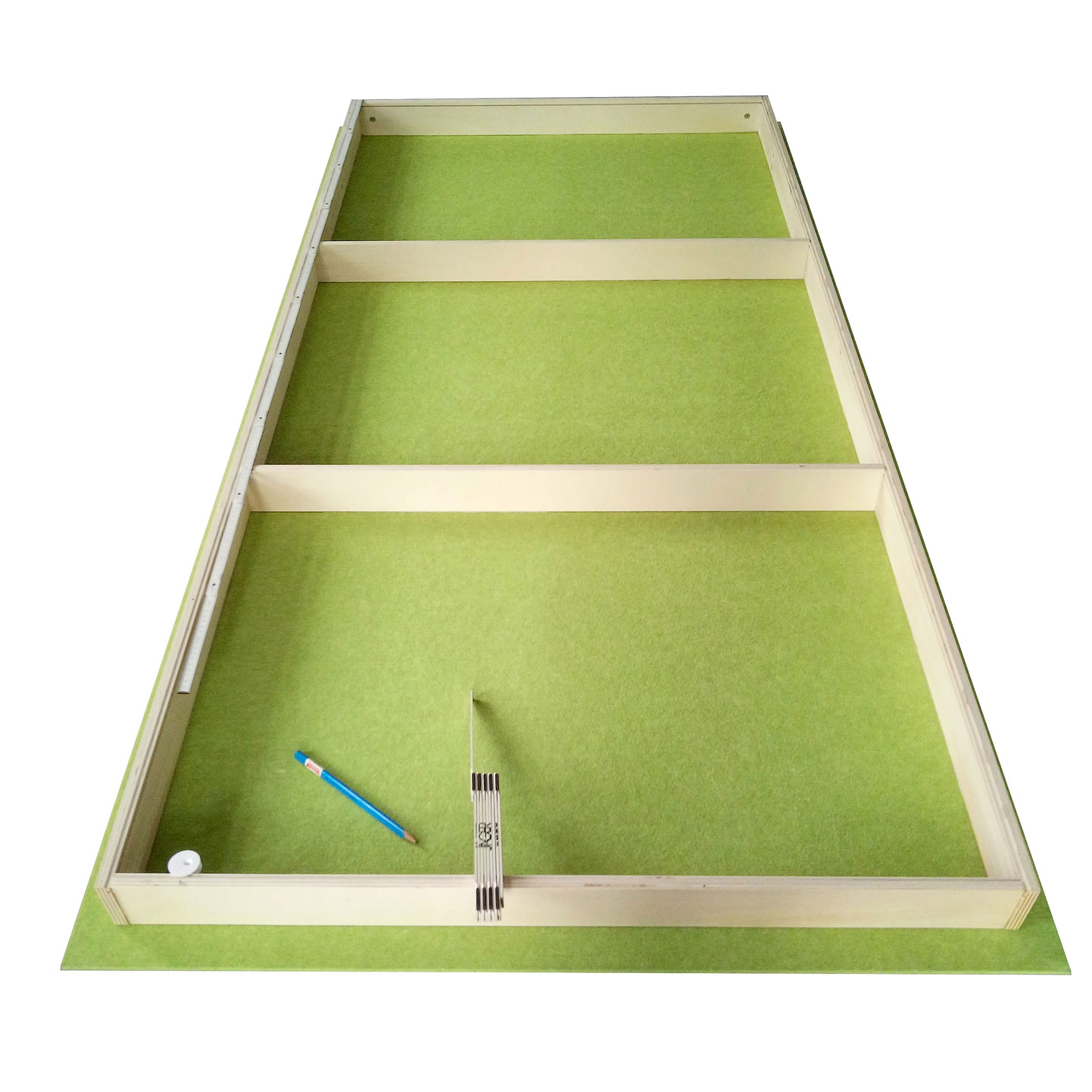

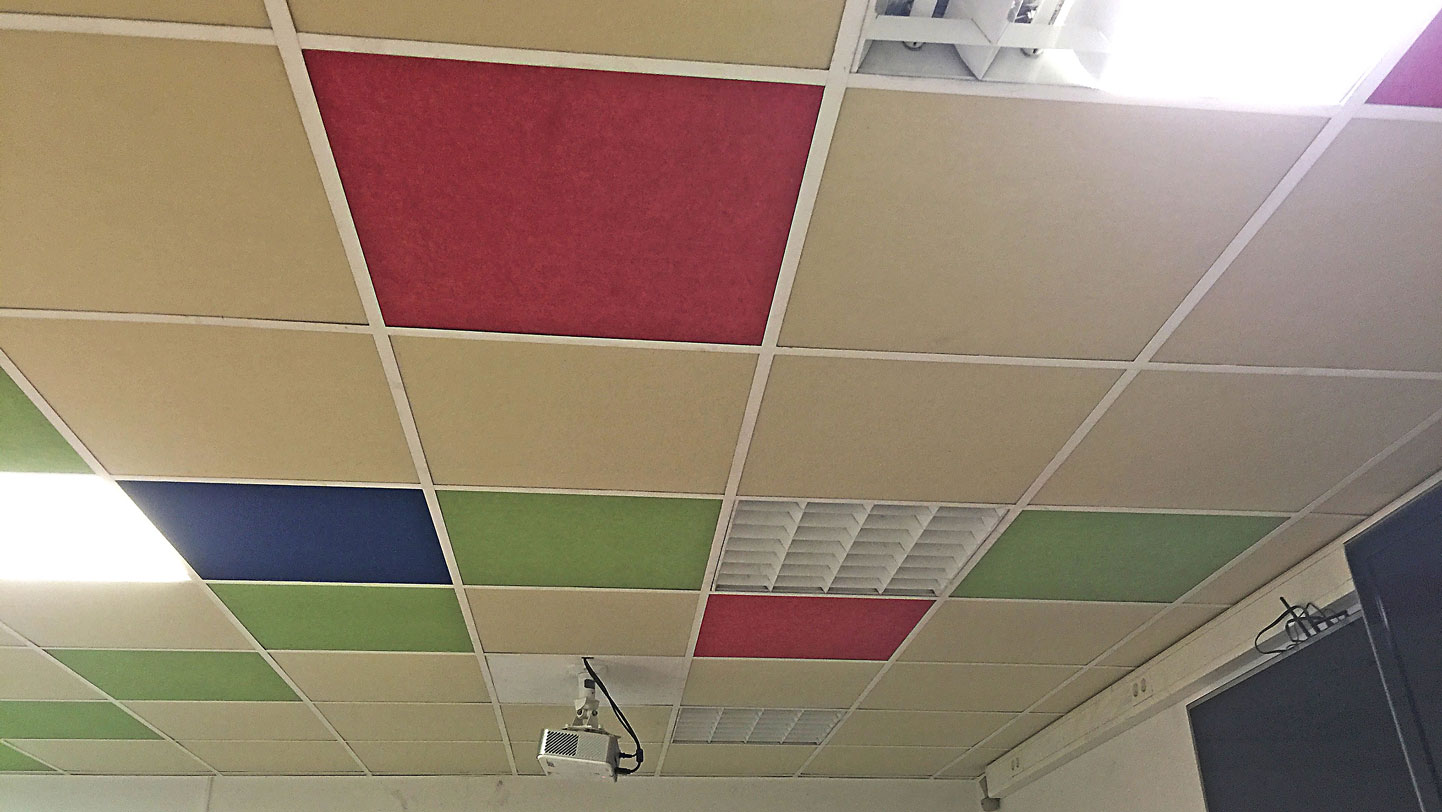

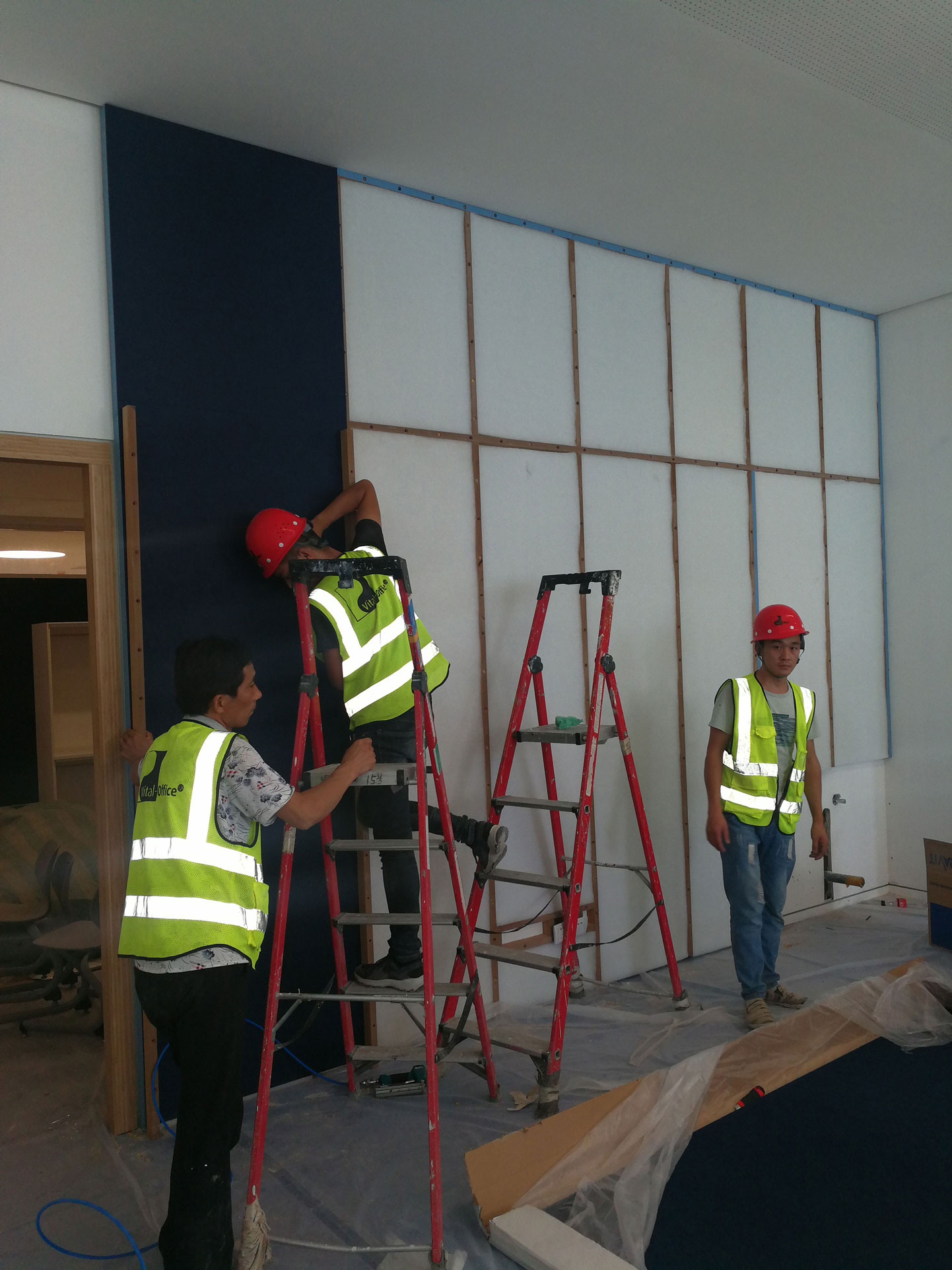

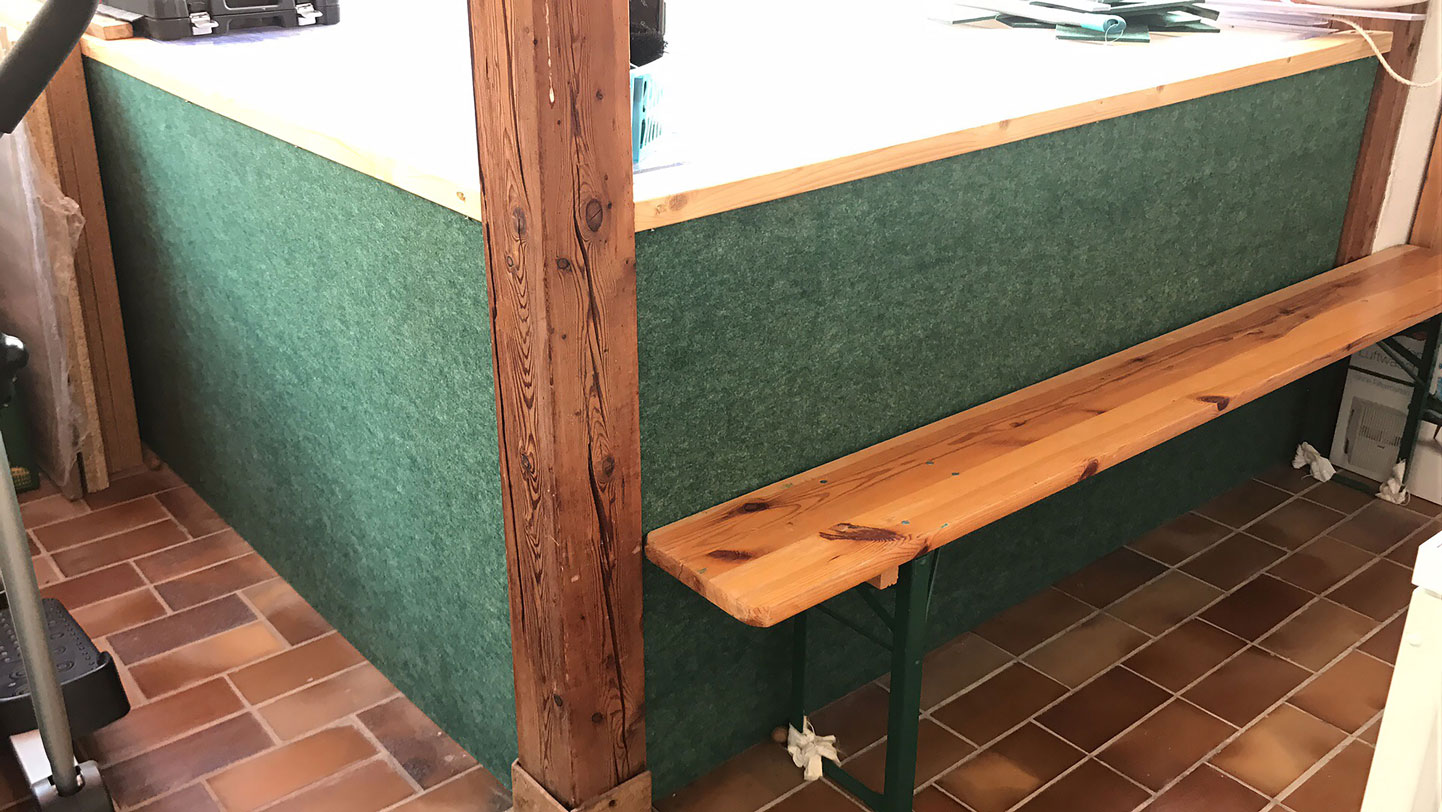

Acoustic wall coverings. The panels are easy to install directly with a carpet adhesive or, for greater sound absorption, to install on a substructure at a distance.

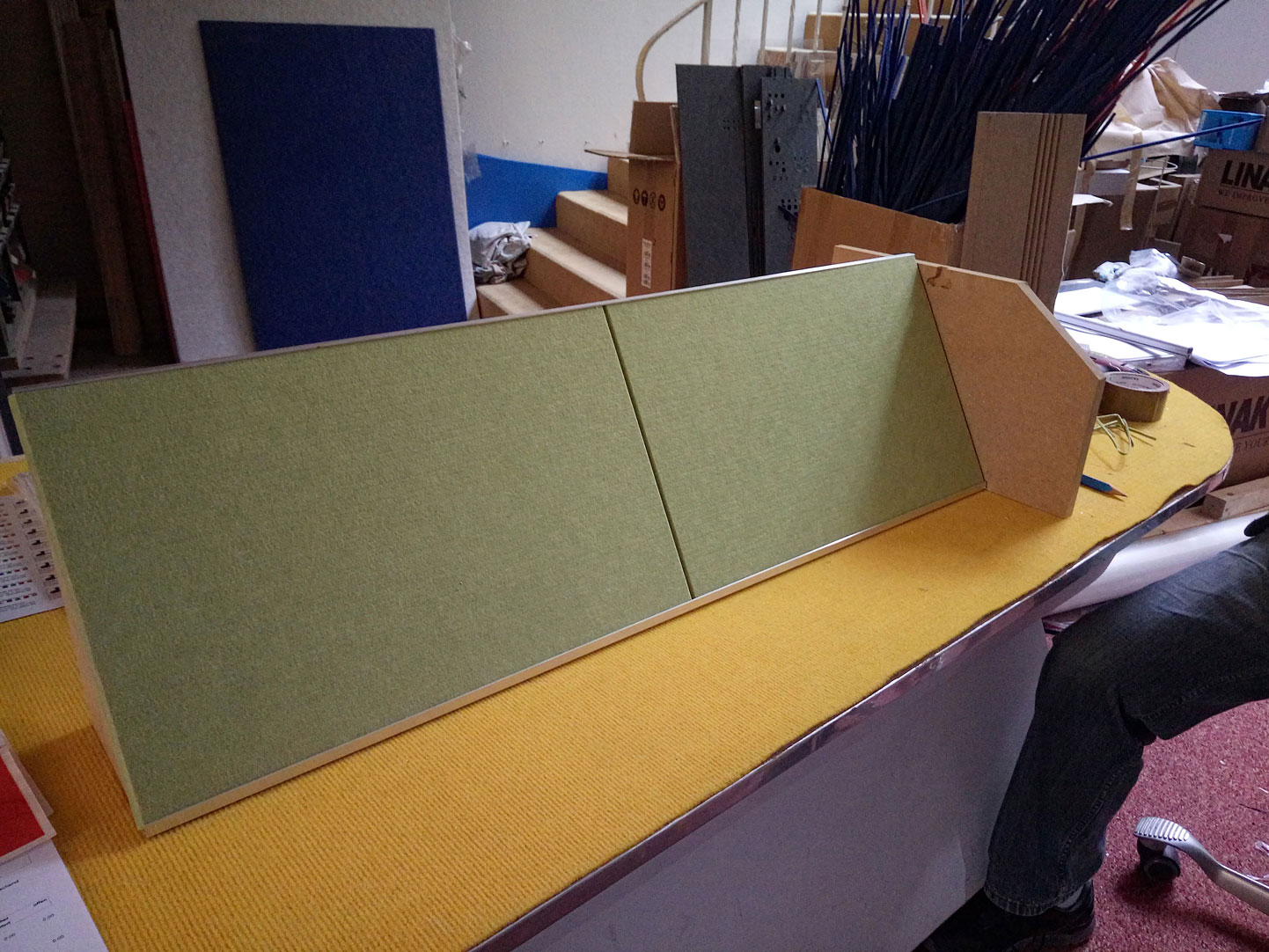

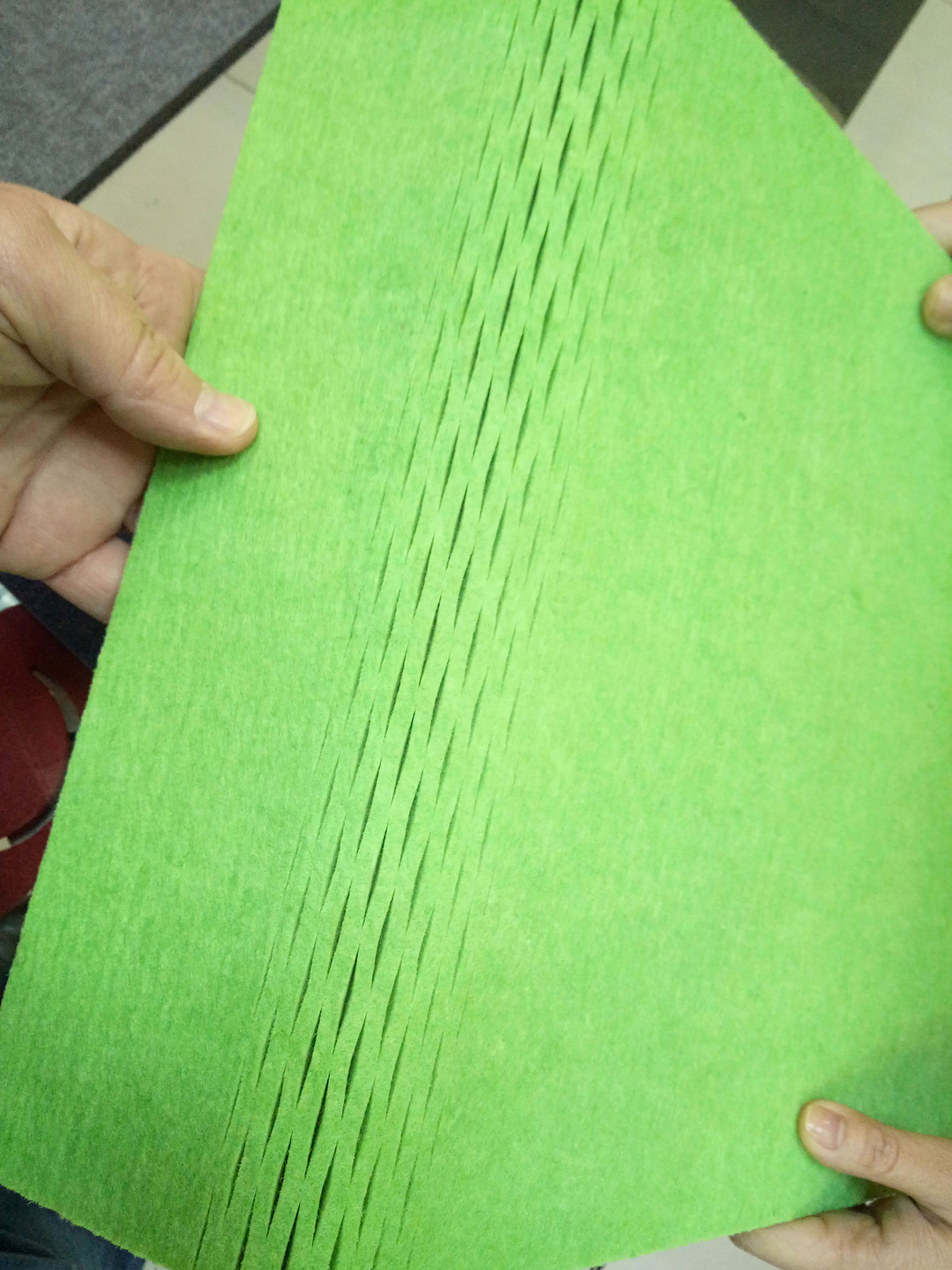

Individual shapes are easy to cut with the knife, or by means of CNC cutting machine (milling is not possible!) To order from us prefabricated.
Plate size 242x122cm

options:

Individual blanks
Individual forms
Up to 50 colors on request
Individual printing with patterns or photos

Project prices:

The quoted volume prices are intended to give an indication of projects. The prices are ex works. Please ask us for your requirements. In return, you will receive an individual offer based on your project or your regular needs. PS The single piece purchase price is the effort for consultation, handy, warehousing, financing, packaging, and much more. appropriate and correspondingly higher than the project prices.
